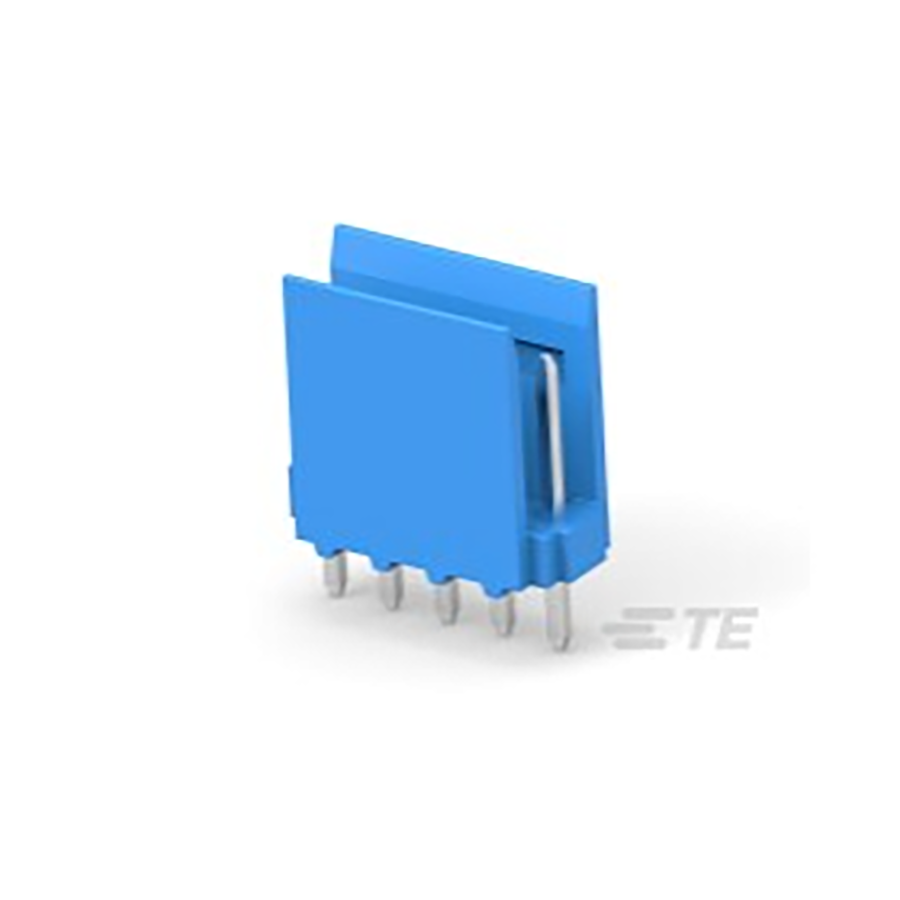

281695-5
Manufacturer:
TE Connectivity
Mfr.Part #:
281695-5
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 500 V |
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Material | Glass, Polyester |
| Packaging | Bulk |
| Depth | 5.08 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Working Voltage | 500 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Blue |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| ELV | Compliant |
| Hole Diameter | 1 mm |
| Number of Poles | 5 |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Resistance | 30 mΩ |
| Contact Current Rating | 3 A |
| Housing Color | Blue |
| Contact Mating Length | 7.0104 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| Contact Gender | Male |
| Mating Post Length | 6.75 mm |
| Contact Shape | Square |
| Shrouded End Dimension | 1.27 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 2.9 mm |
